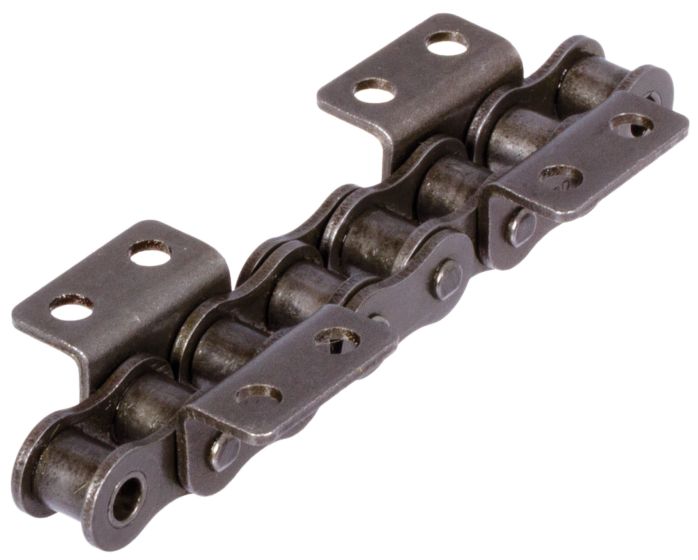

Roller Chains with Bent Attachments K2 = Wide Version 4 x p Doub
Op voorraad
SKU
Roller_Chains_with_Bent_Attachments_K2_=_Wide_Version_4_x_p_Doub
| Art.nr. | Pitch p x Inner Width b1 | DIN ISO | Pitch p | Inner Width b1 min. | h4 | d4 | f/2 | G/2 * | B* | s min. * | Pitch p x Inner Width b1 | Weight | DIN ISO | Pitch p | Inner Width b1 min. | h4 | d4 | f/2 | B* | G/2* | s min.* | Aantal | prijs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10100024 | 3/8 x 7/32 | 06 B-1 | 9.525 | 5.72 | 6.5 | 3.5 | 9.5 | 13.7 | 17.7 | 1.2 | 3/8 x 7/32 | 0.61 | 06 B-1 | 9.525 | 5.72 | 6.5 | 3.5 | 9.5 | 17.7 | 13.7 | 1.2 |
|
€ 9,00
|
| 10500024 | 1/2 x 5/16 | 08 B-1 | 12.7 | 7.75 | 8.9 | 4.5 | 12.7 | 17.6 | 23.2 | 1.6 | 1/2 x 5/16 | 0.99 | 08 B-1 | 12.7 | 7.75 | 8.9 | 4.5 | 12.7 | 23.2 | 17.6 | 1.6 |
|
€ 9,50
|
| 10600024 | 5/8 x 3/8" | 10 B-1 | 15.875 | 9.65 | 10.3 | 5.5 | 15.9 | 22.5 | 29.5 | 1.7 | 5/8 x 3/8" | 1.3 | 10 B-1 | 15.875 | 9.65 | 10.3 | 5.5 | 15.9 | 29.5 | 22.5 | 1.7 |
|
€ 13,70
|
| 10700024 | 3/4 x 7/16 | 12 B-1 | 19.05 | 11.68 | 13.5 | 6.6 | 19.05 | 26.5 | 33.8 | 1.8 | 3/4 x 7/16 | 1.64 | 12 B-1 | 19.05 | 11.68 | 13.5 | 6.6 | 19.05 | 33.8 | 26.5 | 1.8 |
|
€ 16,70
|
| 10800024 | 1" x 17,02 | 16 B-1 | 25.4 | 17.02 | 15.9 | 6.6 | 25.4 | 36.3 | 46.2 | 2.8 | 1" x 17,02 | 3.82 | 16 B-1 | 25.4 | 17.02 | 15.9 | 6.6 | 25.4 | 46.2 | 36.3 | 2.8 |
|
€ 28,00
|
